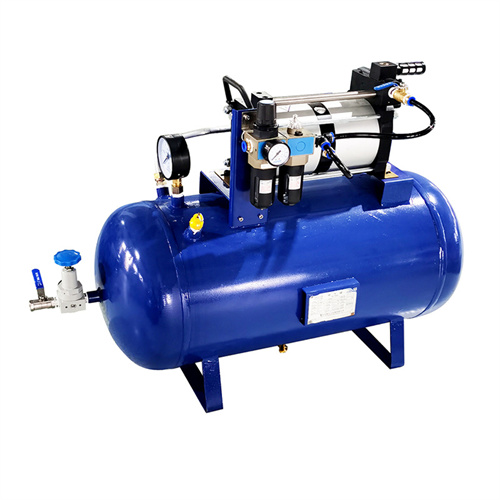

Double air booster unit

Product introduction

Air booster unit (compressed air booster unit) is suitable for the original air pressure system to increase the pressure of the working environment, designed to solve the local compressed air pressure shortage and research and design of products, can improve the air pressure of the working system to 2 times. (For higher pressure output, please refer to the gas booster pump, the maximum pressure is 100 times higher)

Product characteristics

Only the compressed air of the working system can be used as the air source. The pressure in the factory air path is usually no higher than 1.0MPa. Therefore, in the following cases, the booster pump can be used to provide a small amount of local high pressure gas

This product requires no electricity. It has the characteristics of simple operation, high stability, reliable structure, continuous operation, long service life and easy maintenance.

Widely used

Widely used in various workshop air source local pressurization, air pipeline, injection mold, hot runner, mechanical arm, pneumatic dispensing machine, CNC pneumatic clip tool head, cylinder, bottle blowing machine and a variety of air tightness pressure test, pneumatic fixture and a variety of pneumatic equipment pressure insufficient pressurization.

Technical parameter

Type compressed air supercharging system
Drive air source clean compressed air
Driving gas pressure 4-8bar
The maximum output pressure is 1.6MPA
Maximum output flow 1200 L N /min
Air storage tank 100L
The outlet is equipped with a pressure reducing valve that can be adjusted to the required gas pressure
